Part Number SKU: 30166

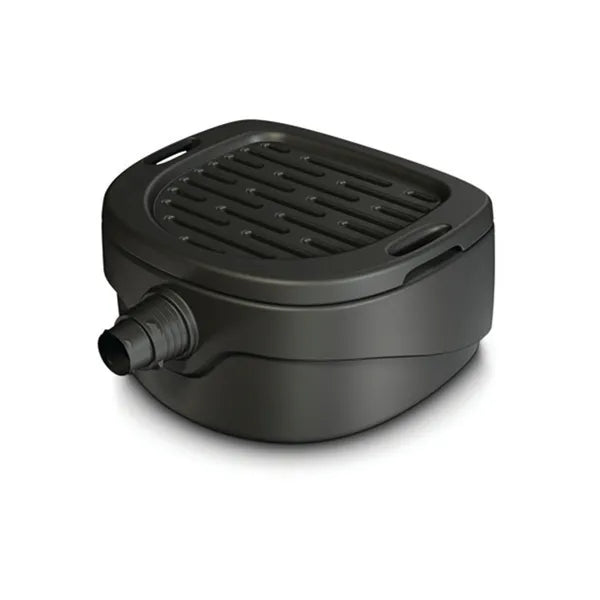

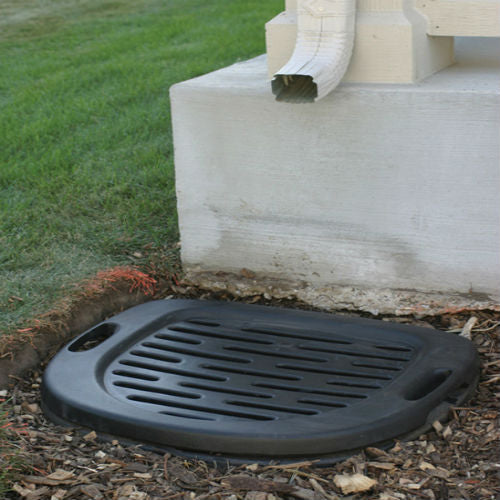

Installed and buried out of sight at the base of the downspout to capture and remove a variety of pollutants and debris that may be flushed out in the system during heavy rain. Incoming rainwater is passed through a series of mechanical filters that remove leaves, twigs, seeds, and small sediment that accumulate on the surface of the roof between rain events. The first stage of filtration consists of a grated lid and layer of gravel (not included) that remove larger debris. The second stage of filtration is a 300-micron net that effectively removes finer particulate such as sediment composed of roofing material, dust, and other debris. Filtered rainwater then discharges into the rainwater harvesting system. The filter includes a molded hose tail that can accommodate a 3" or 4" corrugated drain pipe.
- Captures and removes pollutants and debris from rainwater
- Removes leaves, twigs, seeds, and small sediment that accumulate on the roof

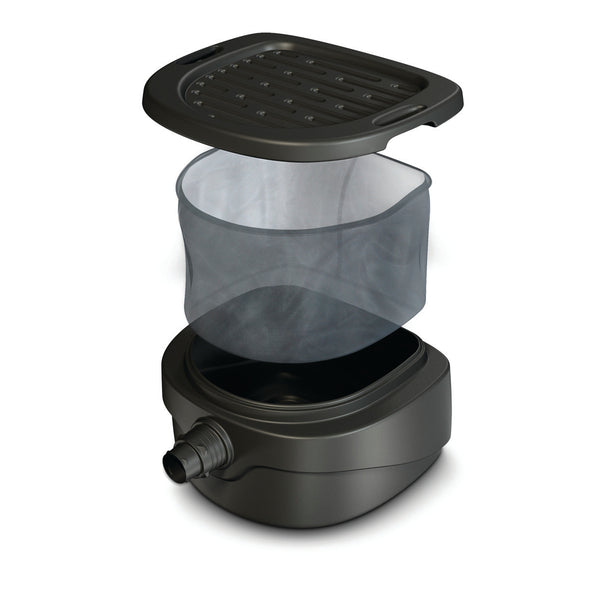

- Two stages of mechanical filtration remove larger and finer particulate
- Durable, rotationally-molded construction
- Molded hose tail accommodates 3" or 4" corrugated drain pipe
- Size: 26" L x 24" W x 13.5" H
- Capacity: 1,500 sq. ft. roof - 50 gal./min.
- Pipe Size: Fits 3" or 4" drain pipe
- Includes: 300-micron debris net
- Weight: 10 lbs.
How to Install a RainXchange Downspout Filter
