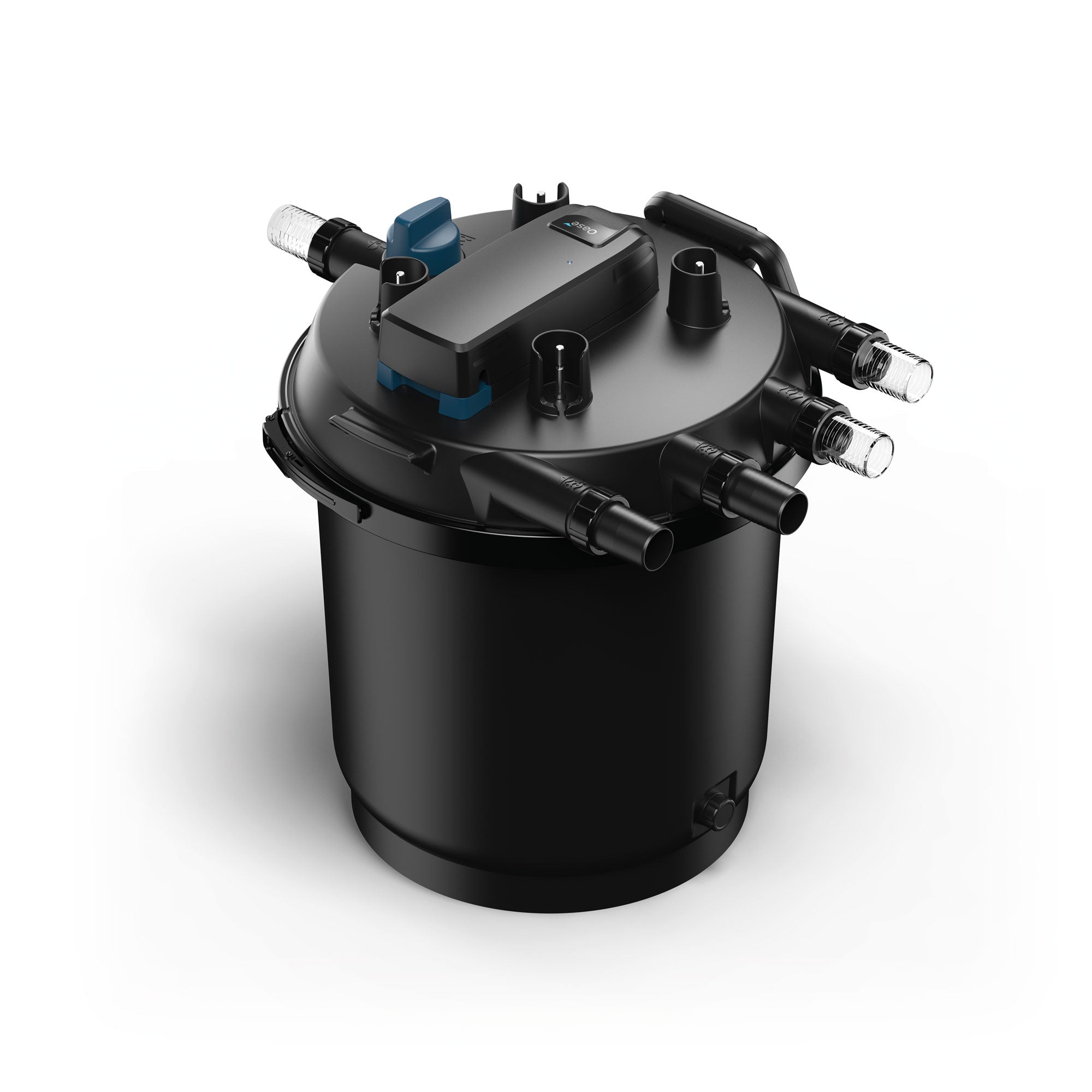

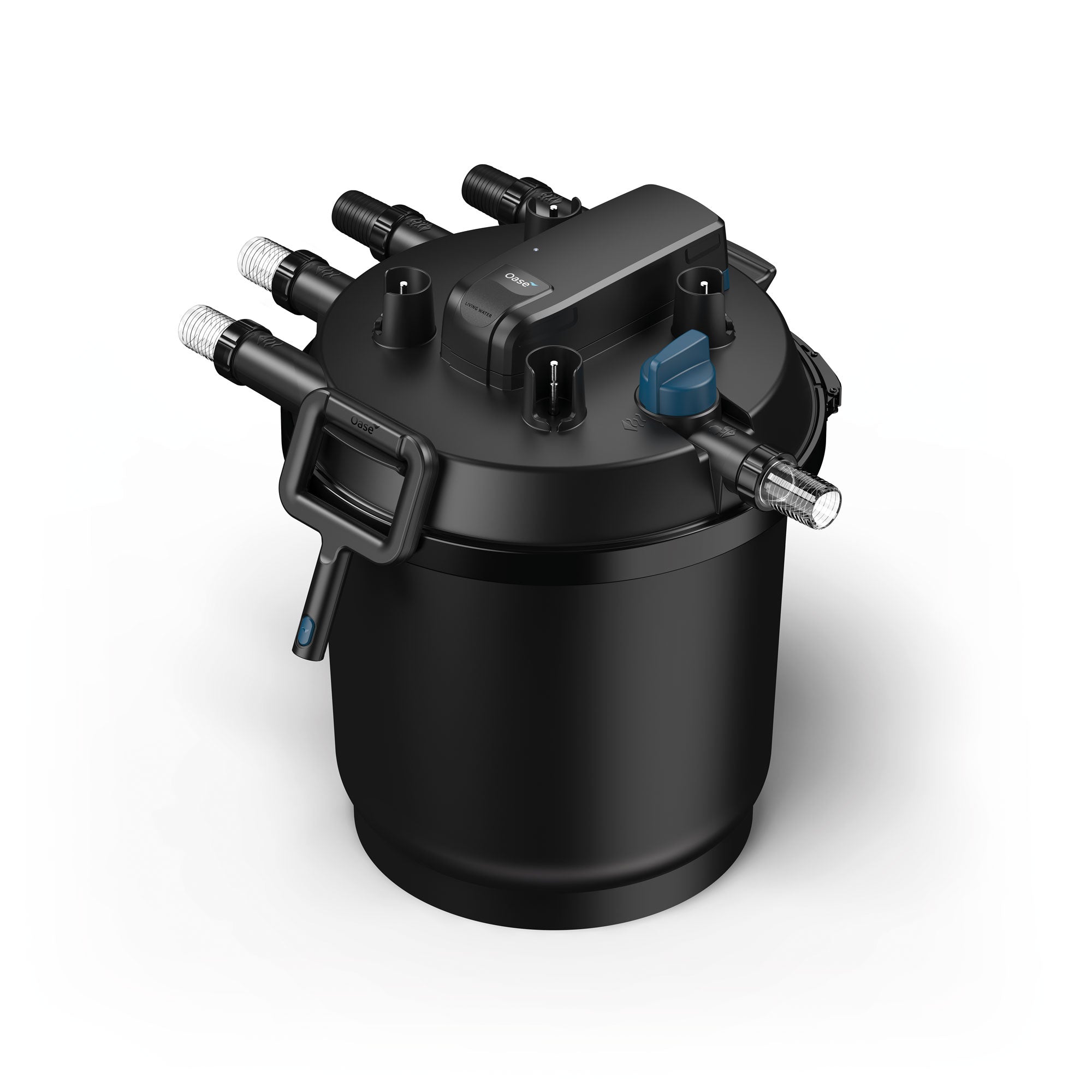

Atlantic Oase Filtoclear 15500 & 23500

Product Details:

• Safety Listing: DEKRA C US
• UVC: 84W
• Max Flow: 5,200 gph
• Max Pressure: 8.7 psi / 20' of head
• Max Pump Input Pressure: 13.7 psi / 31' of head
• Cord Length: 16'
• Hose Size: 2"
• Pond Volume: up to 15,500 gal
• Includes: 4 types of filter foams (10, 20, 30 & 45 ppi), (2) UVC bulbs, metric 2" fittings, (5) 2" Sch40 adapters
• Warranty: 2-year + 1
• Dimensions: 30¾"L x 22¾"W x 27¾"H

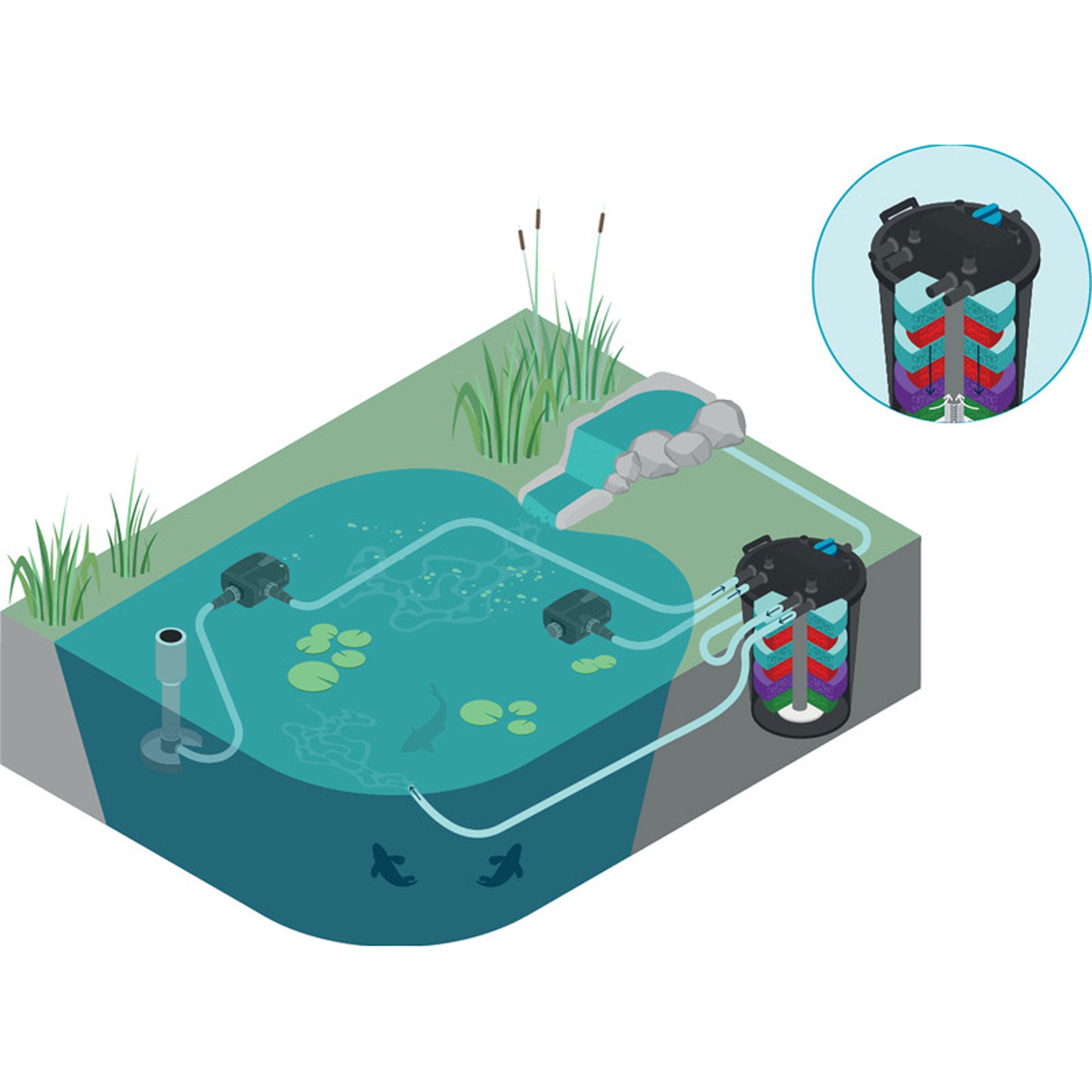

In-line pressure filters offer biological and mechanical filtration that can be located remotely

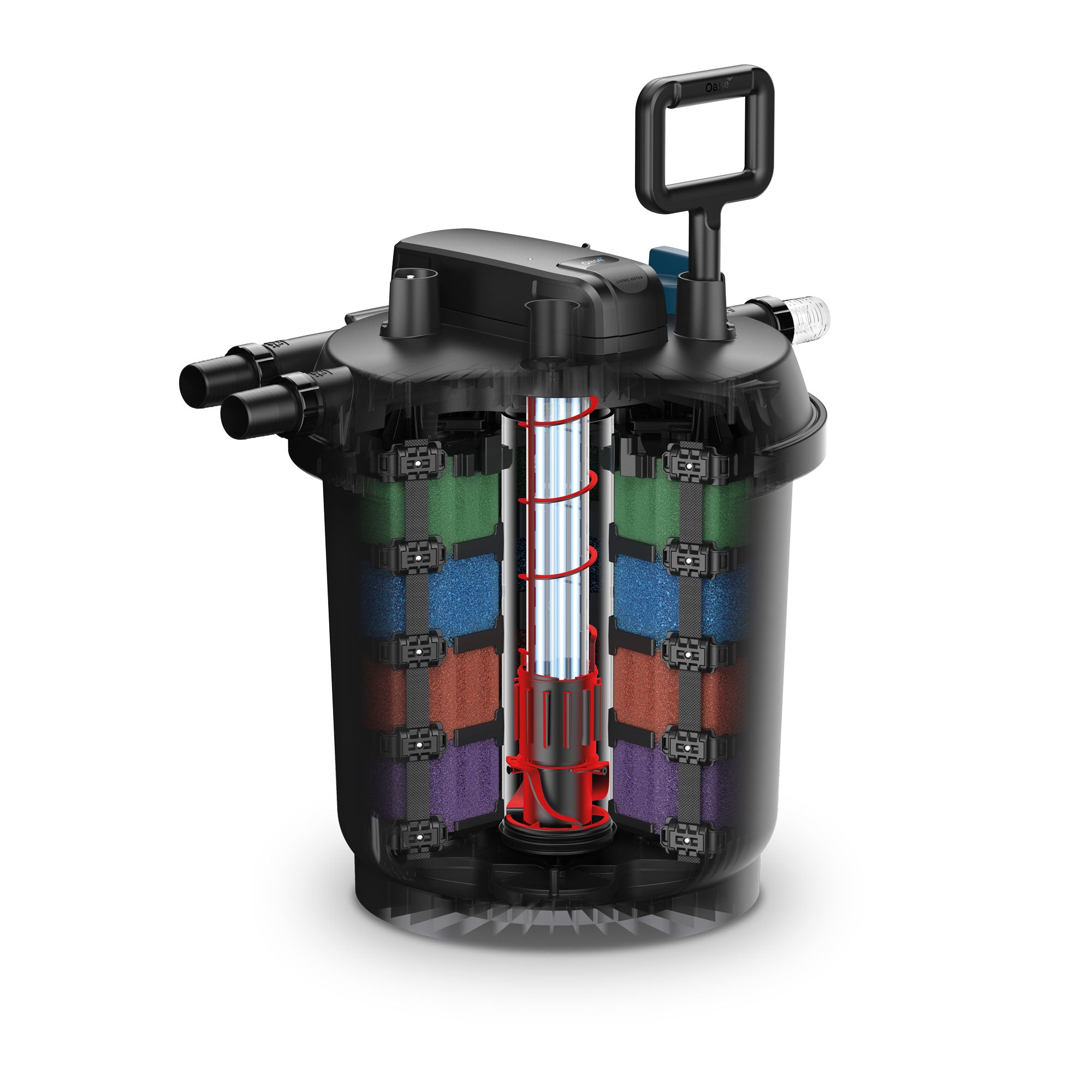

• Oase FiltoClear provides mechanical and biological filtration with ultraviolet clarification (UVC)
• Compact, high-capacity filter is perfect for Fountain, Formal Spillway, Pond-free and Water Garden applications

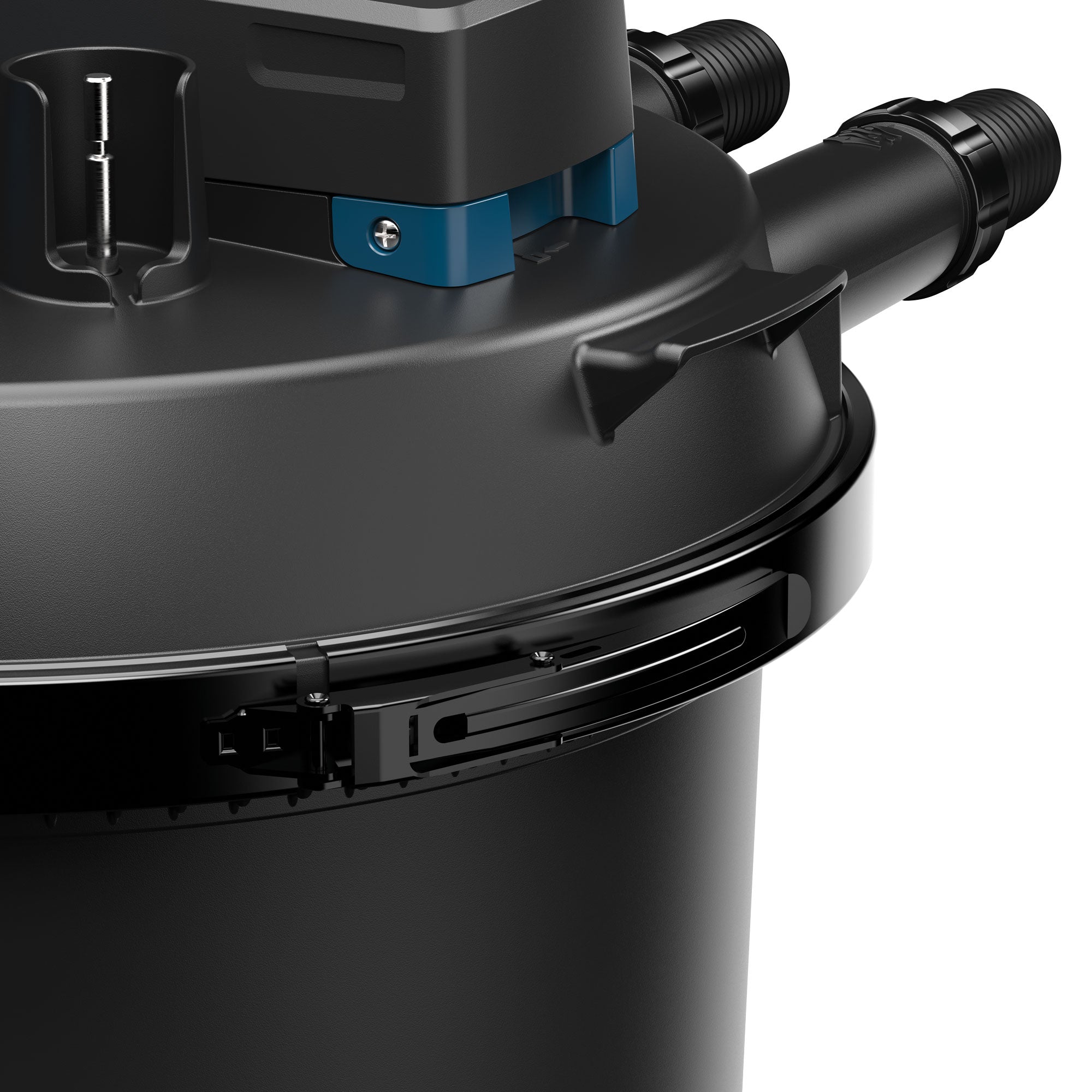

• The high quality, impact resistant body can be buried up to the clamping ring

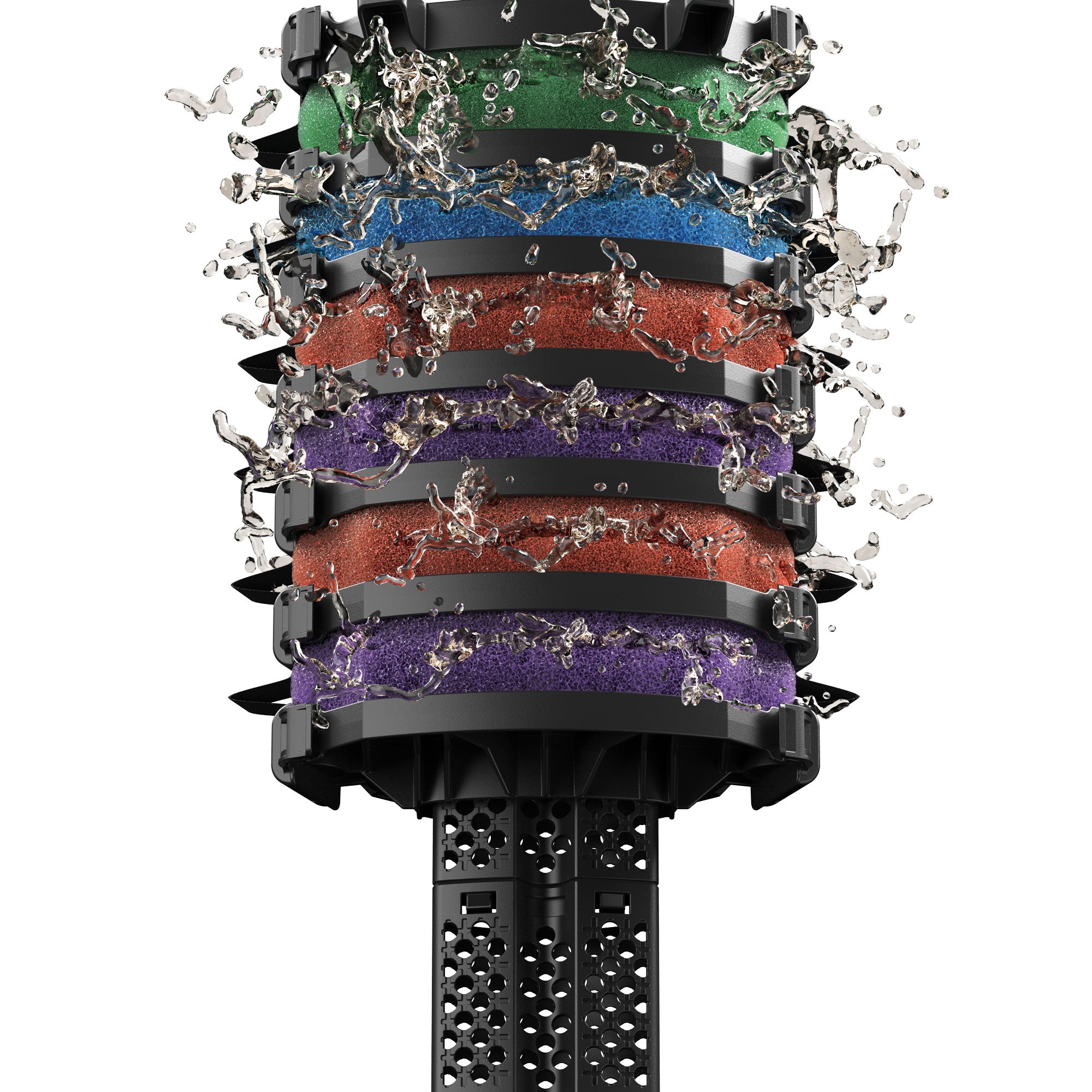

• 4 densities of replaceable filter foams (10, 20, 30 & 45 pores per inch), new plates and extra supports improve cleaning function and ensure long service life
• Patented UVC Cleaning Rotor keeps quartz glass clean for better transmission of UV light

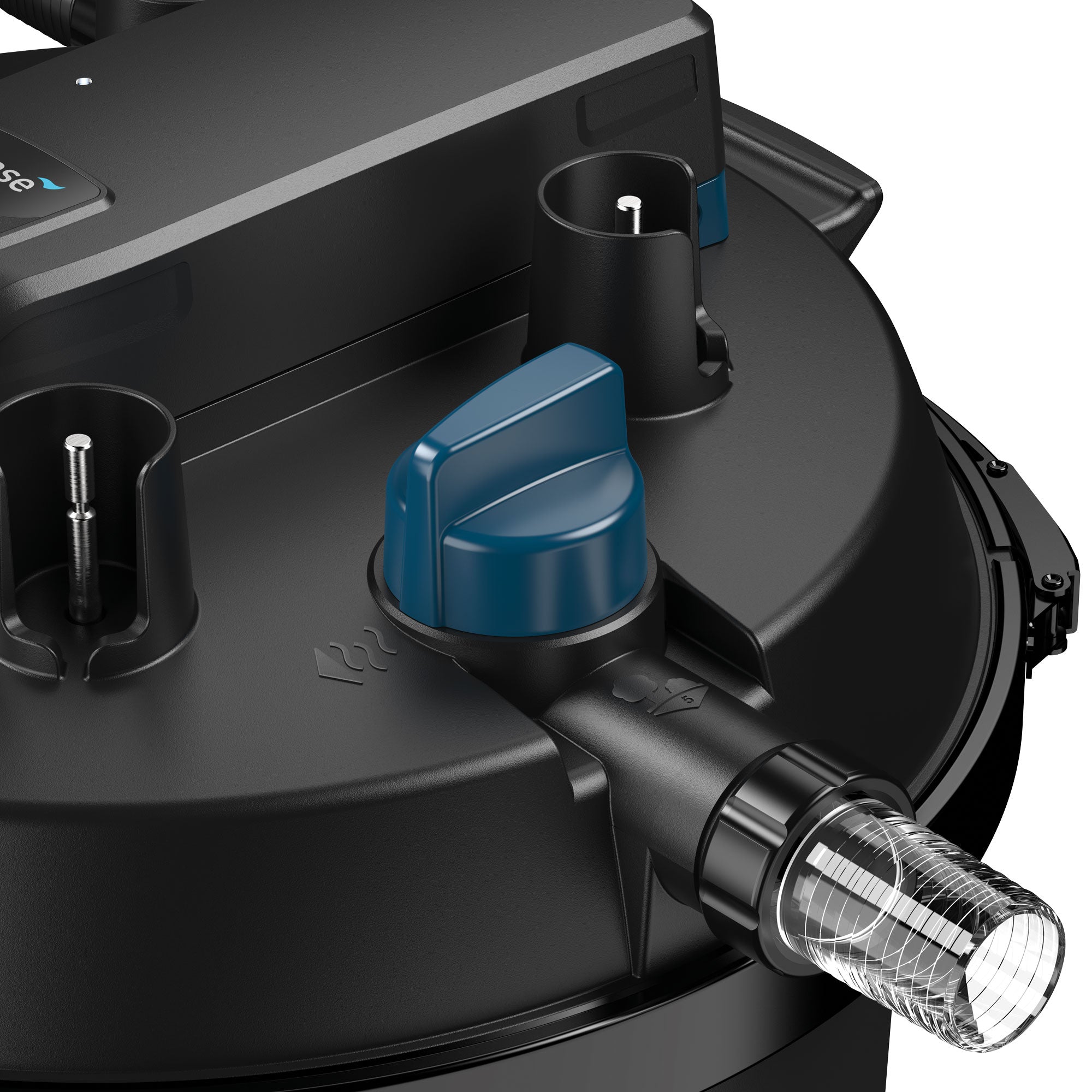

• 2-way Valve backflushes filter and directs waste with Easy-Clean Technology, no need to open filter or remove the cover

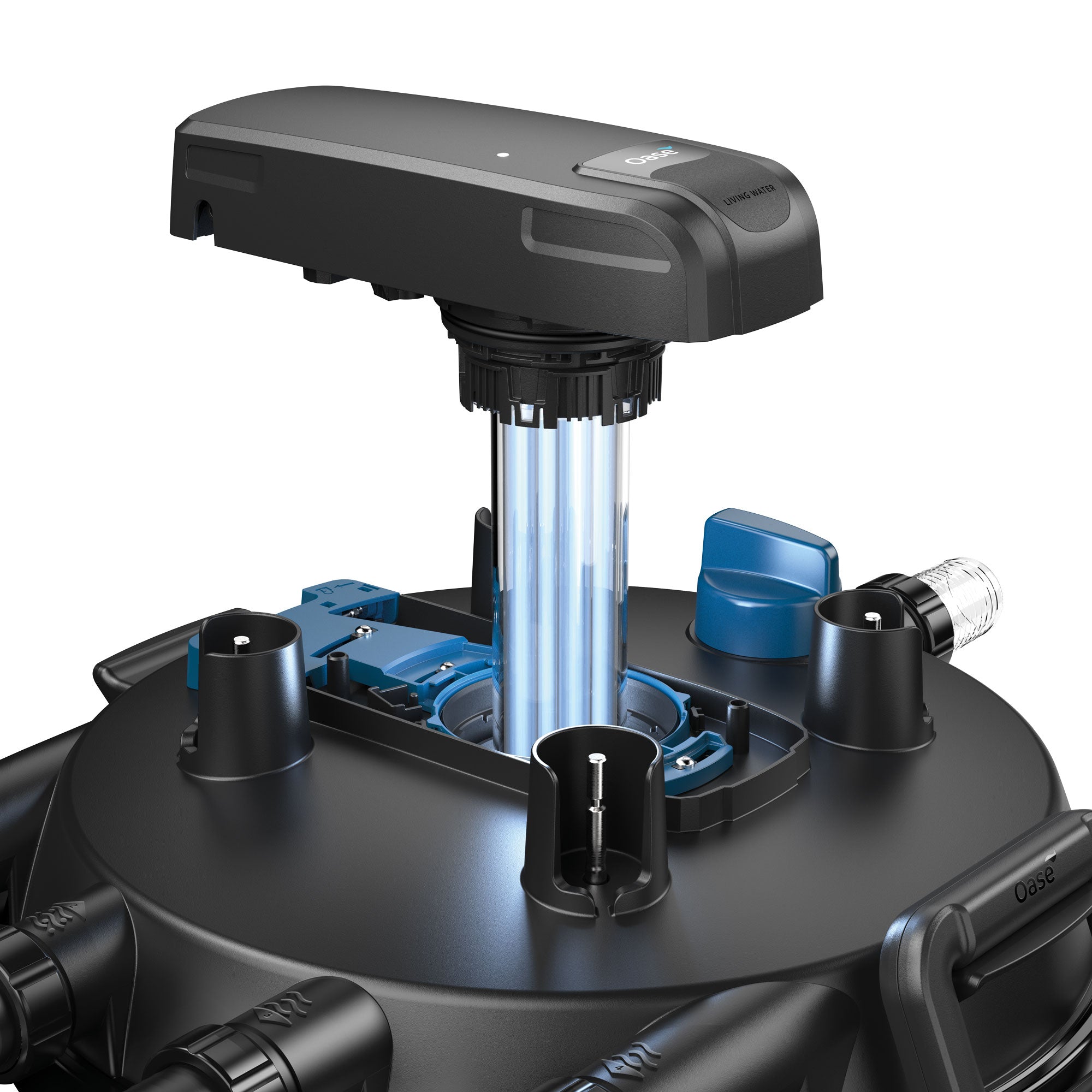

• Monitor UVC, filter performance and pollutant level and change both UV lamps all without opening filter
• Bypass technology ensures constant water flow and prevents the filter from becoming clogged

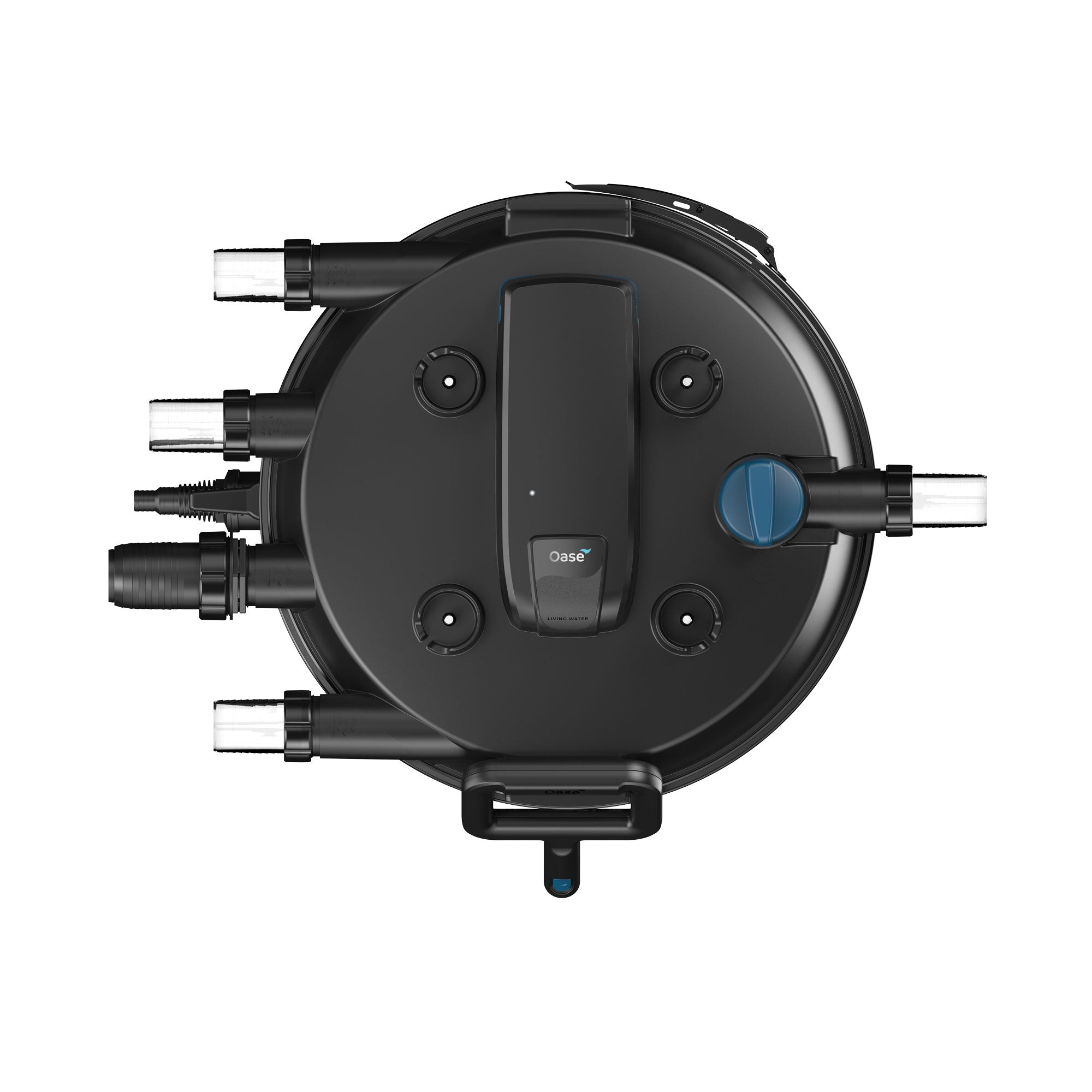

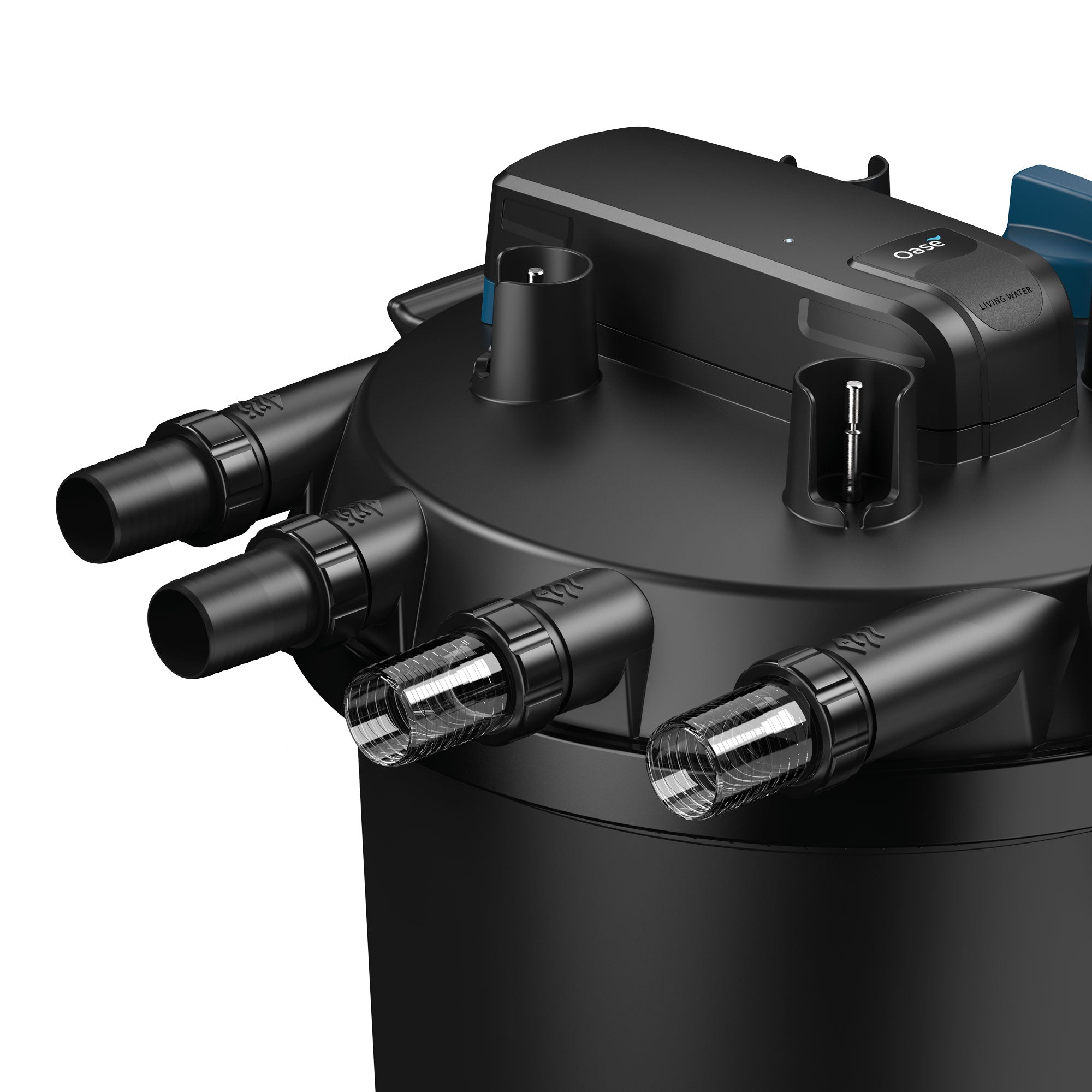

• 2" inlets and outlets allow for multiple draw and return points for water throughout any water feature

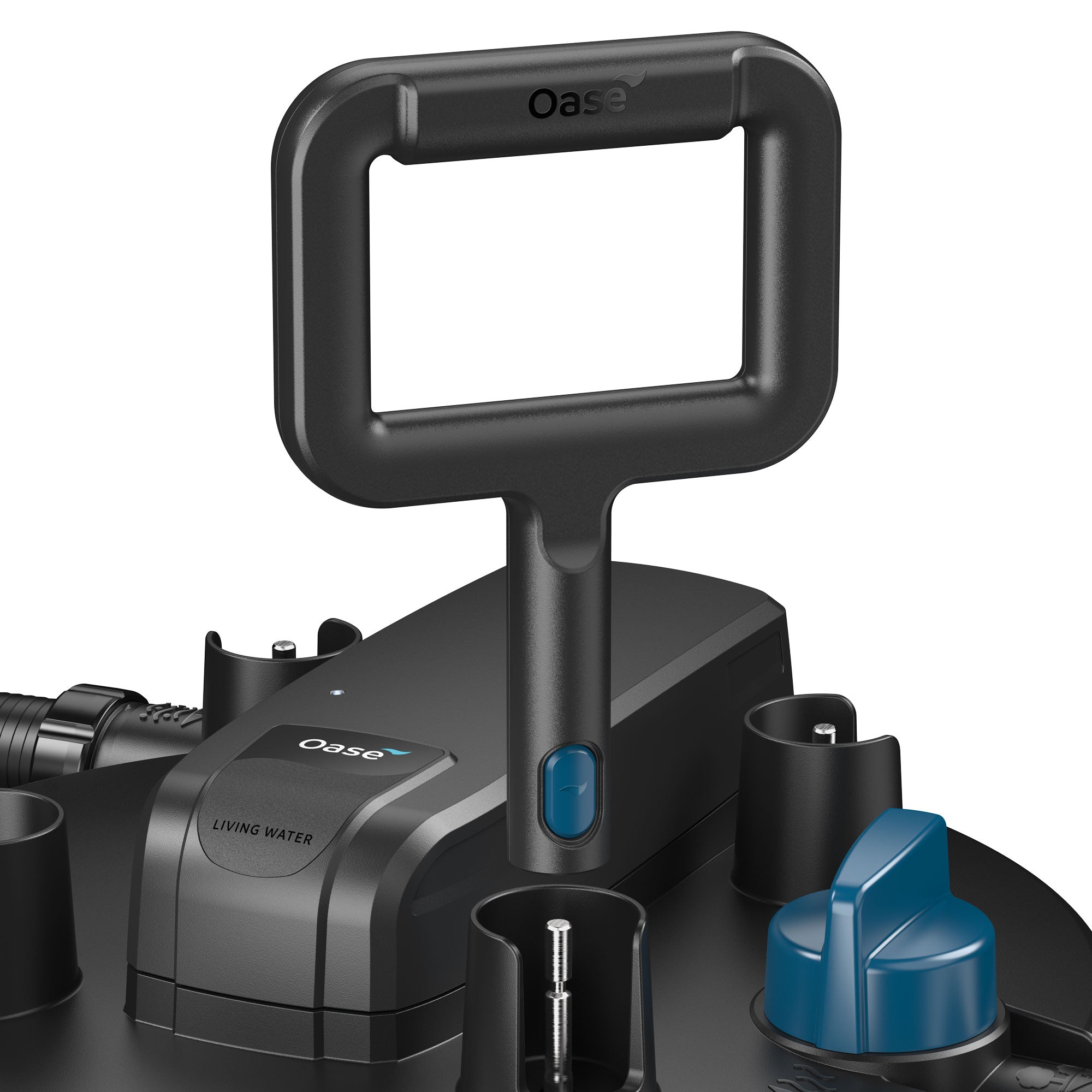

• Switchable cleaning handle connects to four cleaning rods to easily flush foams during cleaning
• Easily drain FiltoClears for winterization without ever opening the filter (optional, sold separately)

The Oase FiltoClear 15500 delivers powerful mechanical and biological filtration with integrated ultraviolet clarification in a compact, high-capacity system designed for fountains, formal spillways, pond-free features, water gardens, and ponds up to 15,500 gallons.

Built with a durable, impact-resistant housing that can be buried up to the clamping ring for discreet installation, the FiltoClear uses four densities of replaceable filter foams (10, 20, 30, and 45 ppi) with improved support plates to maximize filtration efficiency and extend service life.

A patented UVC Cleaning Rotor keeps the quartz sleeve clear for optimal UV performance, while Easy-Clean Technology with a two-way valve allows simple backflushing and waste discharge without opening the filter. Integrated monitoring lets users check UVC operation, filtration performance, and pollutant levels while replacing UV lamps without removing the cover, and bypass technology ensures constant water flow to prevent clogging. With 2" inlets and outlets for flexible plumbing, a switchable cleaning handle connected to internal rods for fast foam flushing, and optional winter drain capability, the FiltoClear combines convenience, efficiency, and reliable performance.

The system includes four filter foams, two 84W UVC bulbs, metric 2" fittings, and five 2" Sch40 adapters, supports flows up to 5,200 gph, and is backed by a 2-year warranty plus 1-year extension.
